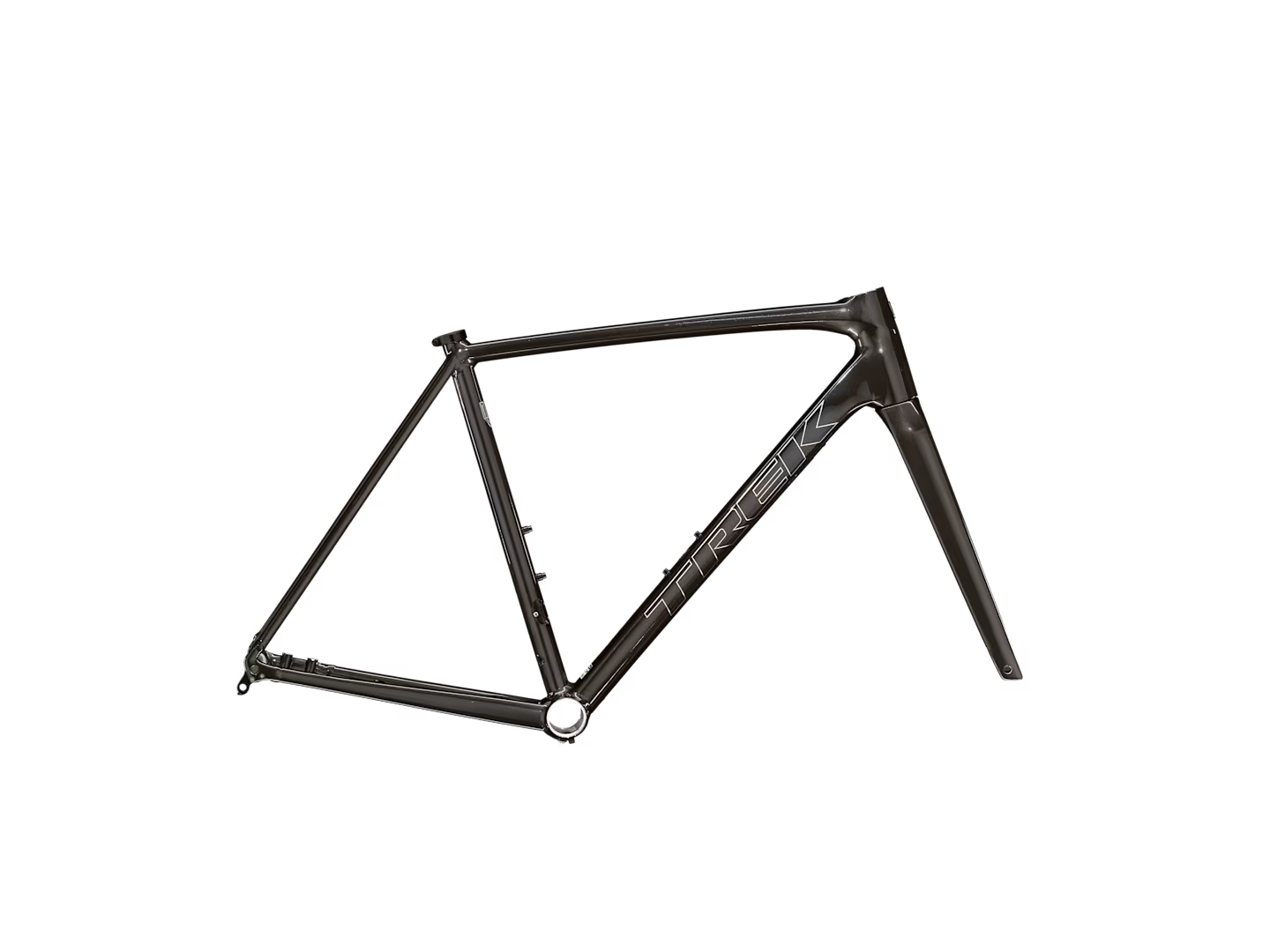

TREK EMONDA ALR DISC FRAMESET

Description

Émonda ALR frameset is a race-ready, top-tier alloy frame that's intensely light, fast, and far more pocket-friendly than carbon frames of its caliber. This lightweight frame is built with top-tier road racing H1.5 geometry, with an integrated cockpit and Kammtail tube shapes for aerodynamic advantage.

rame with Fork

Ultralight 300 Series Alpha Aluminum, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12mm thru axle

Fork

Émonda ALR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle

Frame fit

H1.5 Race

Weight

1257g - 56cm (frame-only, painted), 406g (fork-only, painted)

Weight limit

This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Skewer front

Bontrager Switch thru axle

Skewer rear

Bontrager Switch thru axle, removable lever

Max tire size

28mm
