TREK MADONE SL 5 M (GEN 8) - 2025

Name: TREK MADONE SL 5 M (GEN 8) - 2025
Brand: TREK
Price: 13999.0 MYR
Availability: InStock

RM13,999.00 MYR

Sale Sold out

Tax included.

Product variants

Quantity

Description

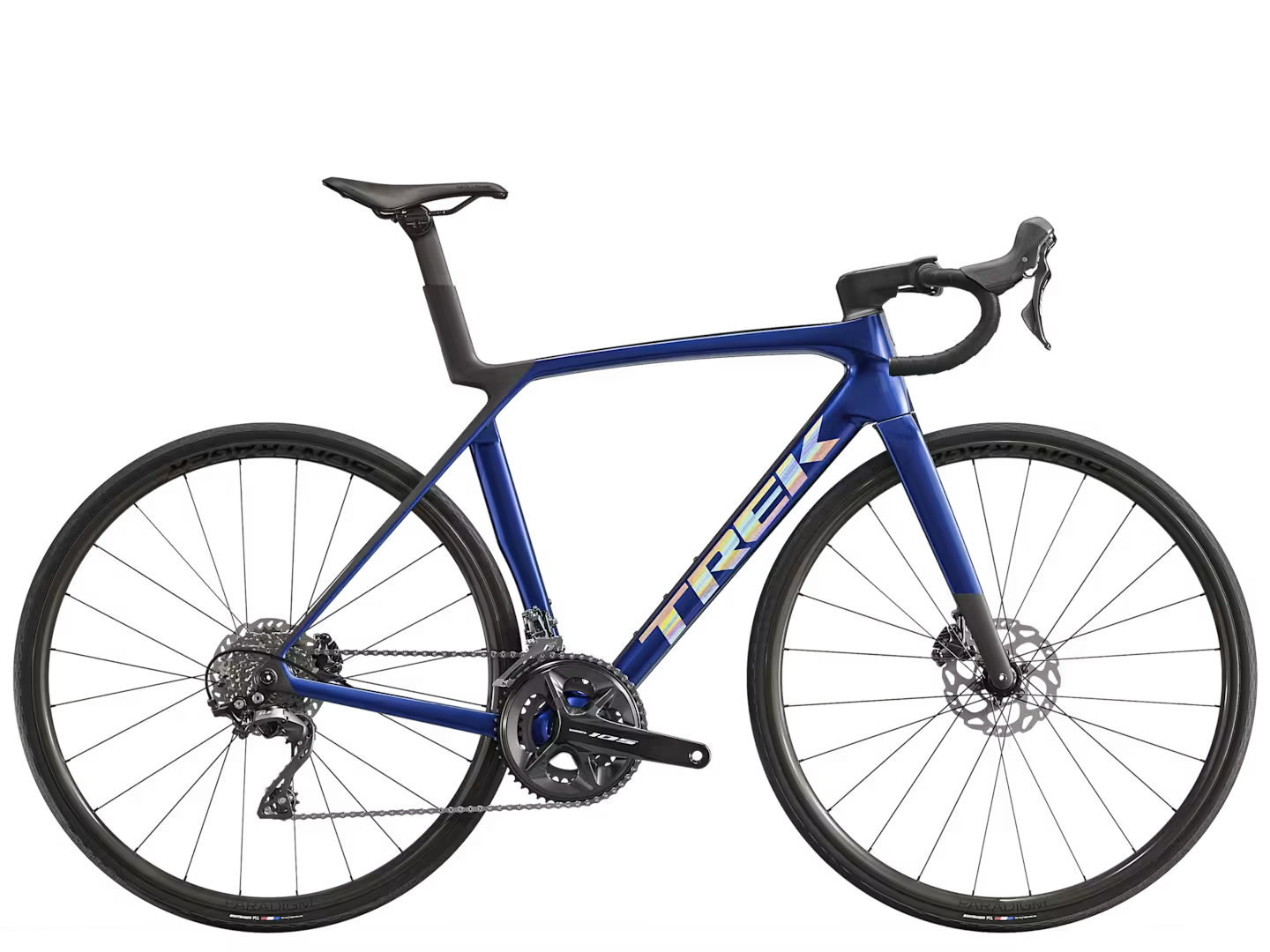

Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon layup and two-piece cockpit with hidden cable routing. It's built to race, with geometry that keeps you quick on the sprints yet in control on fast descents. A Shimano 105 groupset keeps the price down while still delivering clean mechanical shifting you can trust.

Weight	ML - 8.70 kg / 19.19 lbs (with tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

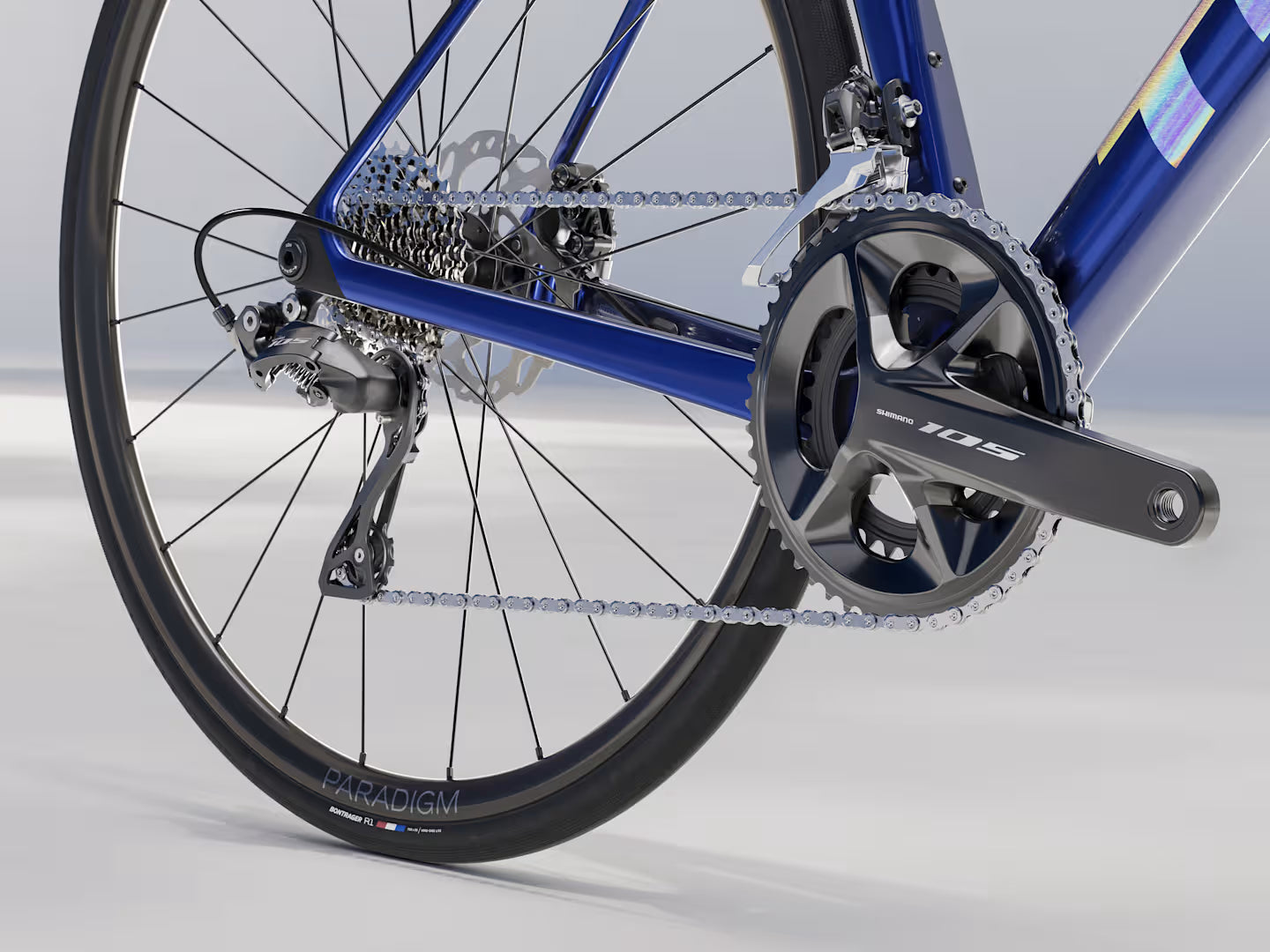

Drivetrain

Shifter	Shimano 105 R7120, 12 speed
Front derailleur	Shimano 105 R7100, braze-on, down swing
Rear derailleur	Shimano 105 R7100, 36T max cog
*Crank	Size: XS, S Shimano 105 R7100, 50/34, 165mm length
	Size: XS, S Shimano RS520, 50/34, 165mm length
	Size: M Shimano 105 R7100, 50/34, 170mm length
	Size: M Shimano RS520, 50/34, 170mm length
	Size: ML, L Shimano 105 R7100, 50/34, 172.5mm length
	Size: ML, L Shimano RS520, 50/34, 172.5mm length
	Size: XL Shimano 105 R7100, 50/34, 175mm length
	Size: XL Shimano RS520, 50/34, 175mm length
Bottom bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano 105 7101, 11-34, 12 speed
Chain	Shimano SLX M7100, 12 speed
Max chainring size	1x: 54T, 2x: 56/43

Wheels

Hub front	Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Skewer front	Bontrager Switch chamfered thru axle, removable lever
Hub rear	Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
*Skewer rear	Size: XS, S, M, ML, L, XL Bontrager Switch chamfered thru axle, removeable lever
*Skewer rear	Size: XS, S, M, ML, L, XL Bontrager Switch chamfered thru axle, removable lever
Rim	Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spokes	14g stainless steel, black
Tire	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28mm
Max tire size	32mm (as measured, see manual for details)

Components

Tre

*Saddle	Size: XS, S Bontrager Aeolus Comp, steel rails, 155mm width
	Size: XS, S, M, ML, L, XL Verse Short, steel rails, 145mm width
	Size: M, ML, L, XL Bontrager Aeolus Comp, steel rails, 145mm width
*Seatpost	Size: XS, S, M, XL Madone aero carbon seatpost, 0mm offset, short length
*Seatpost	Size: ML, L Madone aero carbon seatpost, 0mm offset, long length

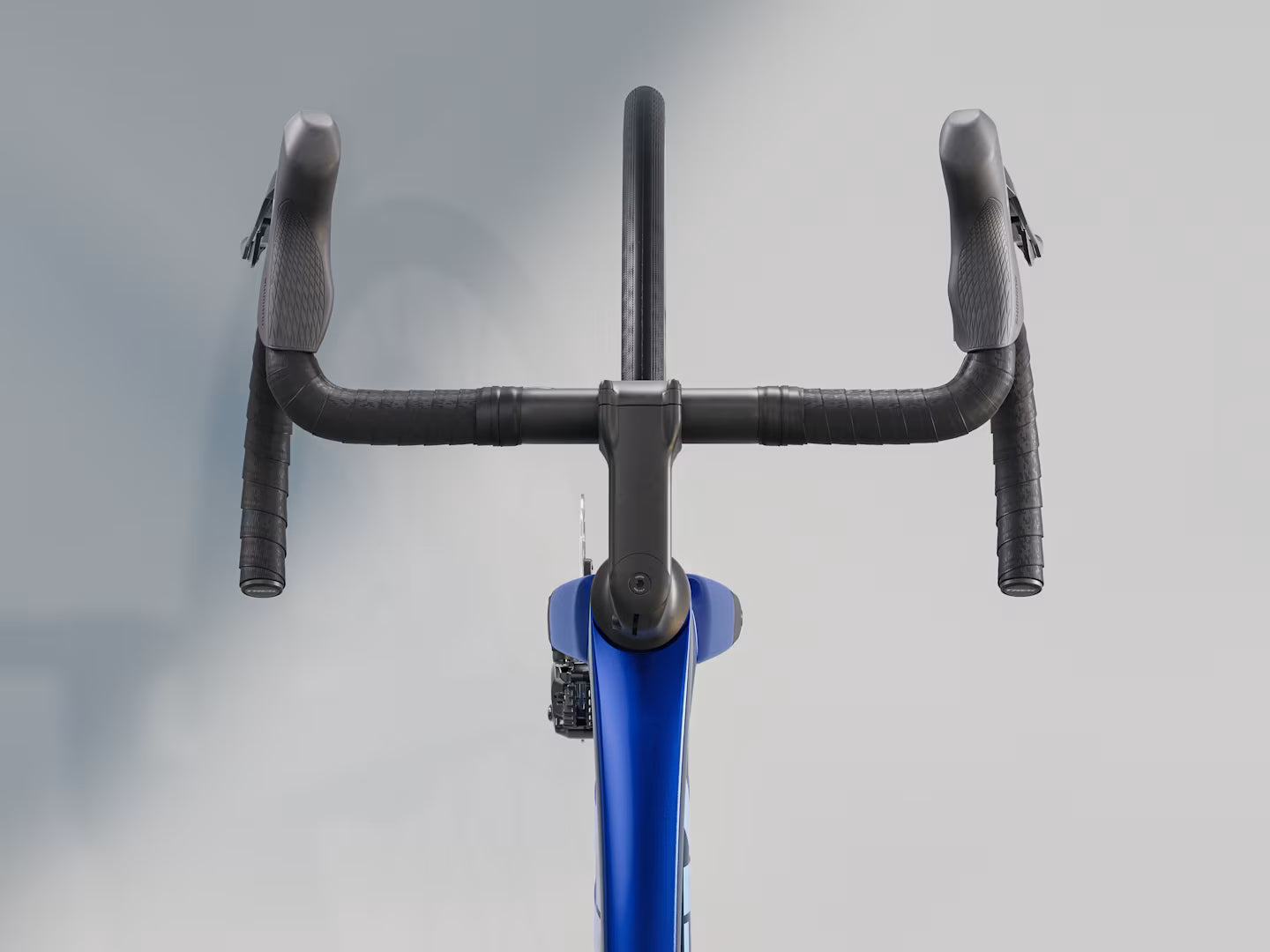

*Handlebar	Size: XS Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
	Size: S, M Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
	Size: ML, L Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
	Size: XL Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Handlebar tape	Trek EcoTack, black
*Stem	Size: XS Trek RCS Pro, -7 degree, 80mm length
	Size: S, M Trek RCS Pro, -7 degree, 90mm length
	Size: ML, L Trek RCS Pro, -7 degree, 100mm length
	Size: XL Trek RCS Pro, -7 degree, 110mm length
Brake rotor	Shimano RT70, centerlock, 160mm
Rotor size	Max brake rotor sizes: 180mm front, 160mm rear
