TREAK MADONE SL GEN 8 DISC FRAMESET - 2025
TREAK MADONE SL GEN 8 DISC FRAMESET - 2025
Regular price
RM11,999.00 MYR
Regular price
Sale price
RM11,999.00 MYR
Unit price
/
per
Tax included.
Couldn't load pickup availability
Description

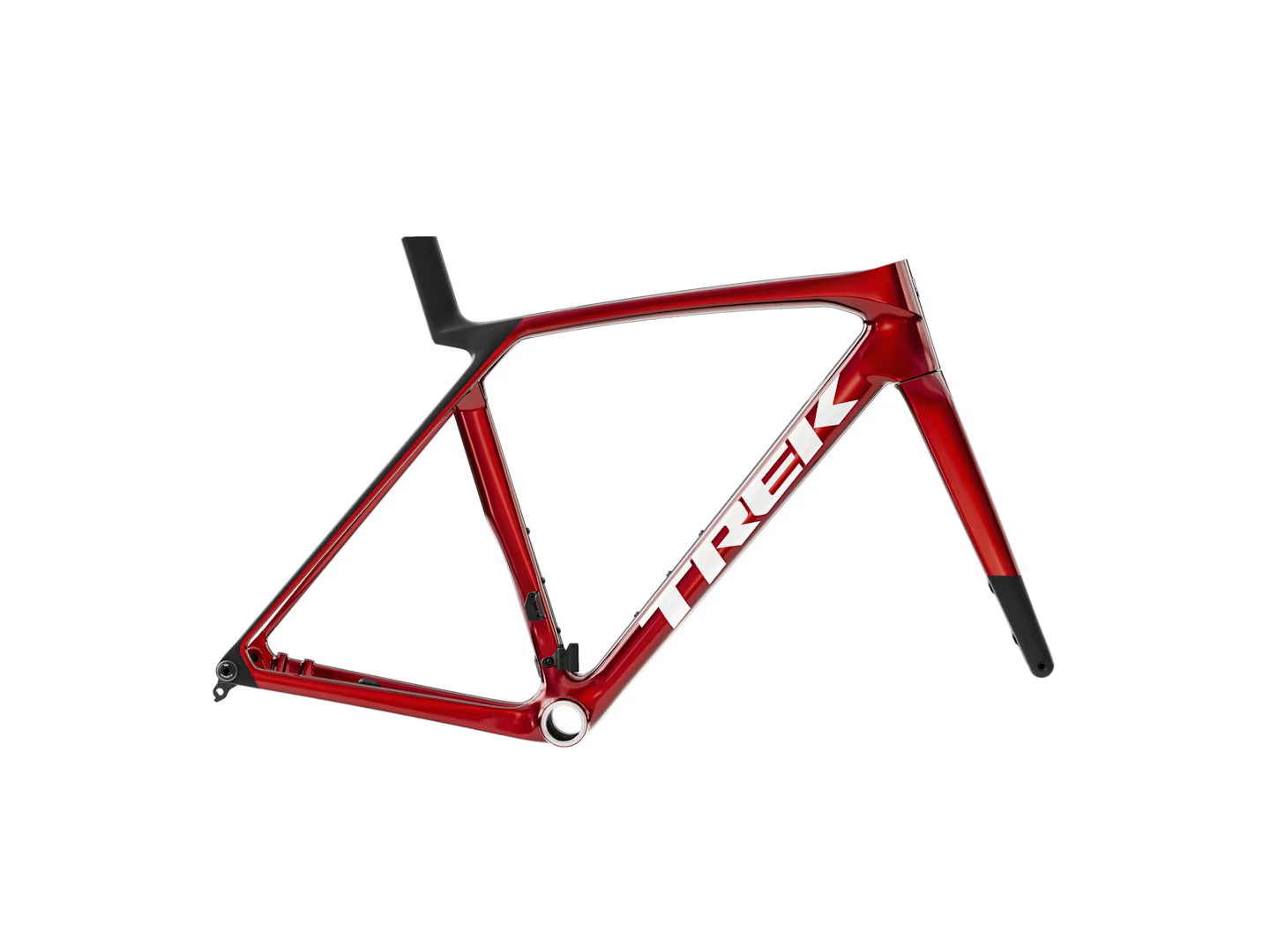

Madone SL Gen 8 Frameset is an insanely light, aerodynamic, and built to race. It's crafted with 500 Series OCLV Carbon that finds the sweet spot between stiff power, light weight, and compliance. Plus, IsoFlow frame technology adds comfort on long rides without sacrificing speed or aerodynamics.
| Frame with Fork | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle |
|---|---|
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
Weight
| Weight | 1054g - ML (frame-only, painted) 363g (fork-only, painted) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
Drivetrain
| Max chainring size | 1x: 54T, 2x: 56/43 |
|---|
Wheels
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
|---|---|
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Max tire size | 32mm (as measured, see manual for details) |
Components
| Rotor size |
Max brake rotor sizes: 180mm front, 160mm rear |
|---|
