Shimano WH-RS710-C46-TL Carbon Clincher

Description

Typical Shimano, the WH-RS710 wheels also benefit from the technology concepts of the in-house high-end series. Thanks to the same DNA that already distinguishes the wheelsets of the Dura Ace R9200 and Ultegra R8100 groupsets, the models at the level of the 105 R7100 series are also full carbon wheels that combine the balanced performance of the role models with a low price.

All Shimano WH-RS710 wheels are united by the perfect synthesis of aerodynamics, low weight and stiffness, which offers a completely new riding experience. However, while the C32 version (32 mm profile height) focuses on acceleration and hill climbs, the C46 variant (46 mm profile height) presents itself as the first-class all-rounder.

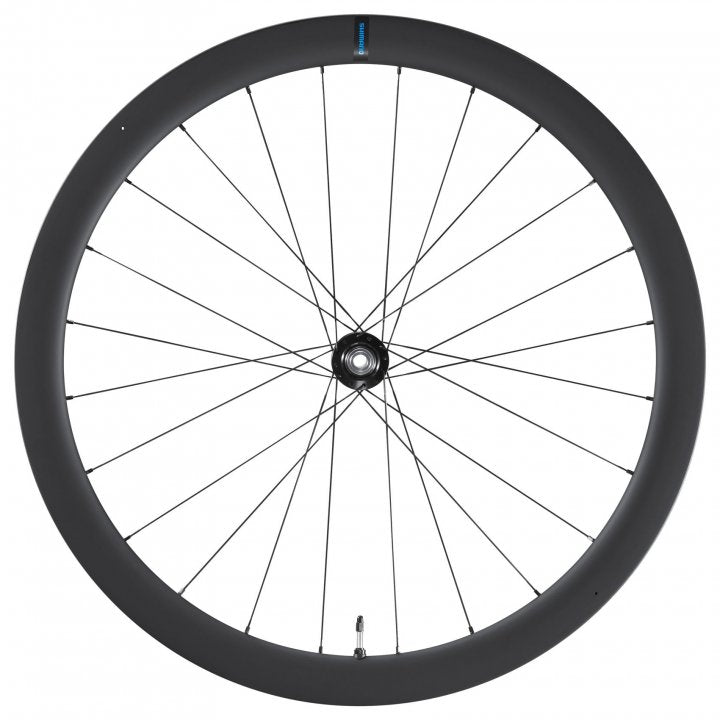

Technical details of the Shimano WH-RS710-C46-TL-F front wheel

• tire type: clincher, Tubeless compatible
• construction: hooked
• wheel size: 28 inch (700C)
• outer width: 28 mm / inner width: 21 mm / profile height: 46 mm

• brake disc mount: Centerlock
• bearings: cup and cone, contact sealings
• installation dimension: 12 x 100 mm (thru axle)

• bladed aero spokes: DT Swiss Hybrid 2 (J-Bend; double butted / 2.0 - 1.6 - 2.0 mm)
• spoke count: 24
• spoke pattern: double crossed (both sides)

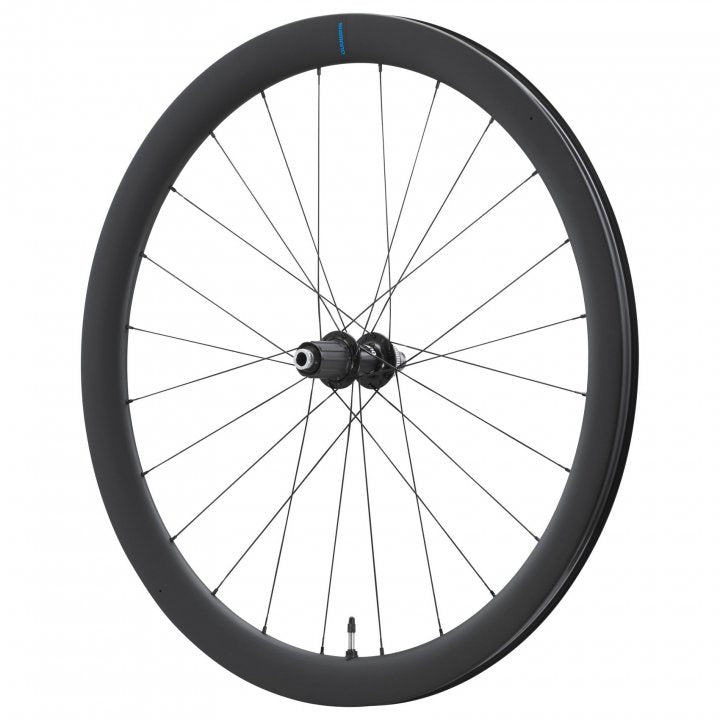

Technical details of the Shimano WH-RS710-C46-TL-R rear wheel

• tire type: clincher, Tubeless compatible
• construction: hooked
• wheel size: 28 inch (700C)
• outer width: 28 mm / inner width: 21 mm / profile height: 46 mm

• brake disc mount: Centerlock
• freewheel: Pawl
• bearings: cup and cone, contact sealings
• installation dimension: 12 x 142 mm (thru axle)

• bladed aero spokes: DT Swiss Hybrid 2 (J-Bend; double butted / 2.0 - 1.6 - 2.0 mm)
• spoke count: 24
• spoke pattern: double crossed (both sides)
