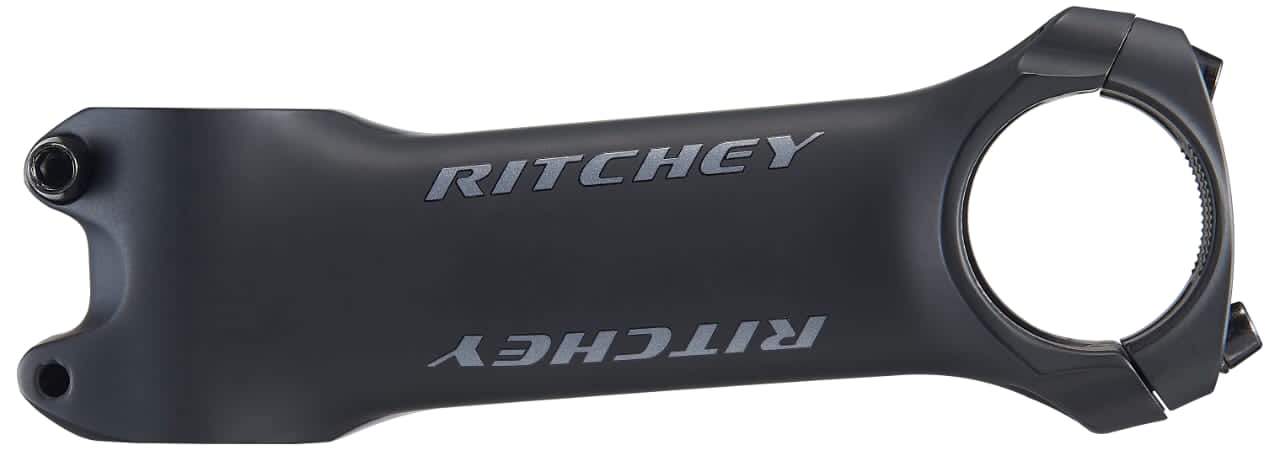

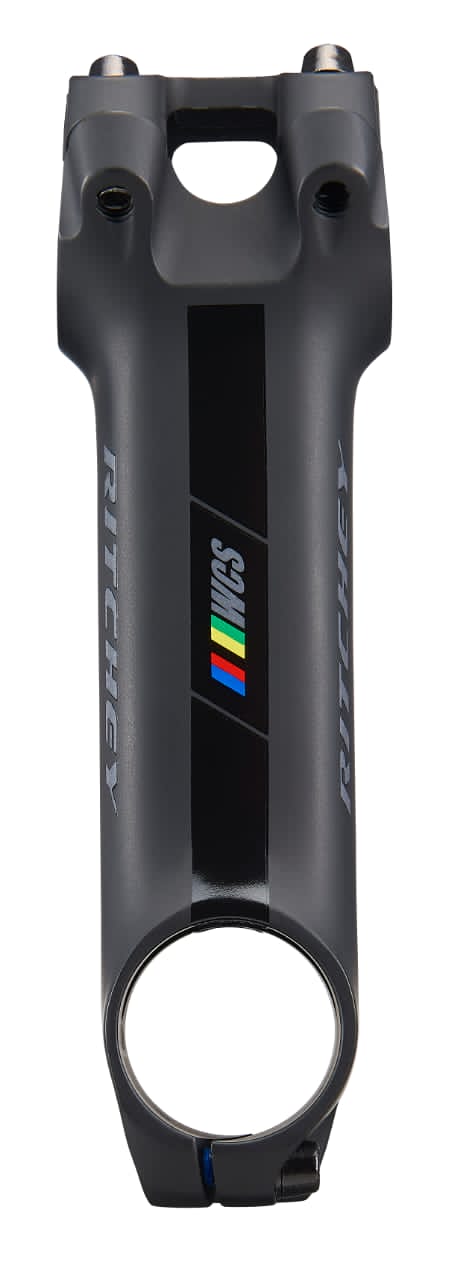

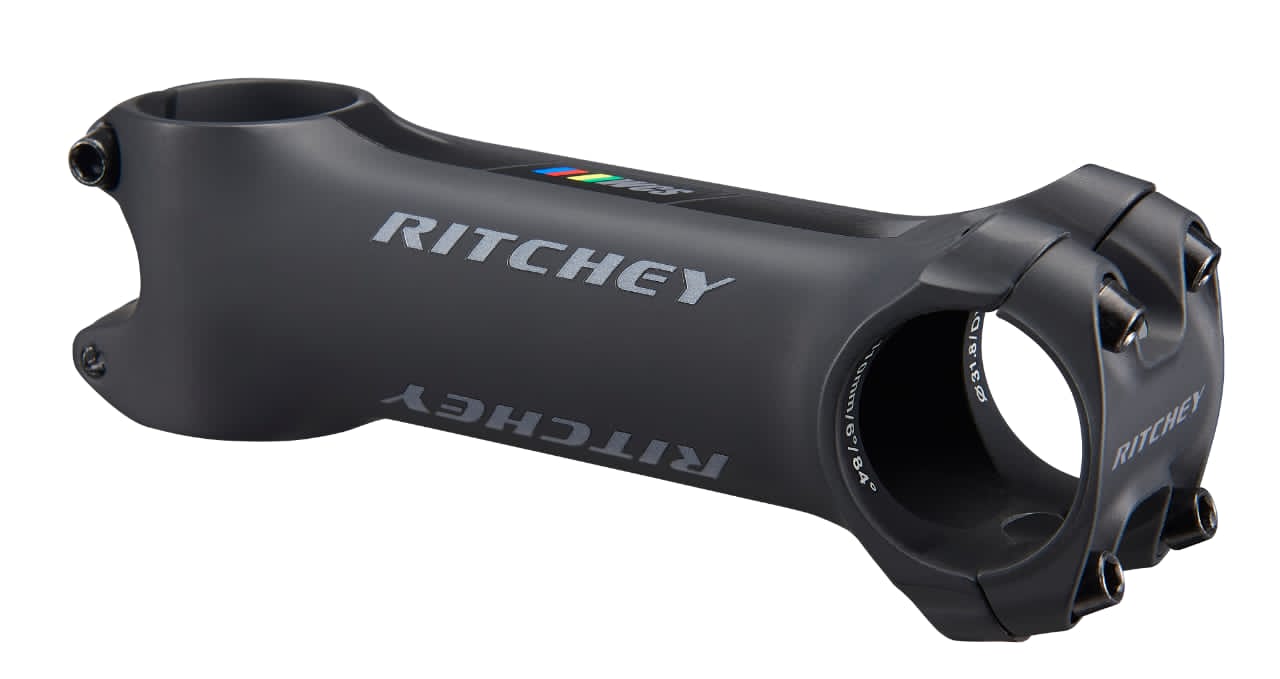

RITCHEY WCS TOYON ALLOY STEM

The new Ritchey WCS Toyon stem takes its lead from the original, award-winning Ritchey C220 stem and gives it a more modern shape and increased stiffness for improved handling and greater responsiveness. The Toyon retains the clamping surface area of the C220, which creates a more secure interface by wrapping a full 200° over the handlebar. Its bolt forces are aligned with the clamp so that the body 'embraces' the handlebar – a design which is less prone to damaging lightweight bars and allows for a lighter faceplate and stem body with no sacrifice in strength or stiffness. Built from life and all that inspires it, the Toyon builds upon the proven and celebrated C220 design with a fresh, squared aesthetic that adds to the overall harmony of modern frame designs – matching its good looks with enhanced confidence and a more lively feel for wherever your rides take you.

Main features of the WCS Toyon Stem

• Matching top cap included
• 6-degrees of positive or negative rise
• 1-1/8th steerer diameter

Specifications of the WCS Toyon Stem

• Material: 3-D Net forged 2014 alloy stem body with 34x34.5 square profile
• 220º bar wrap for improved stress distribution

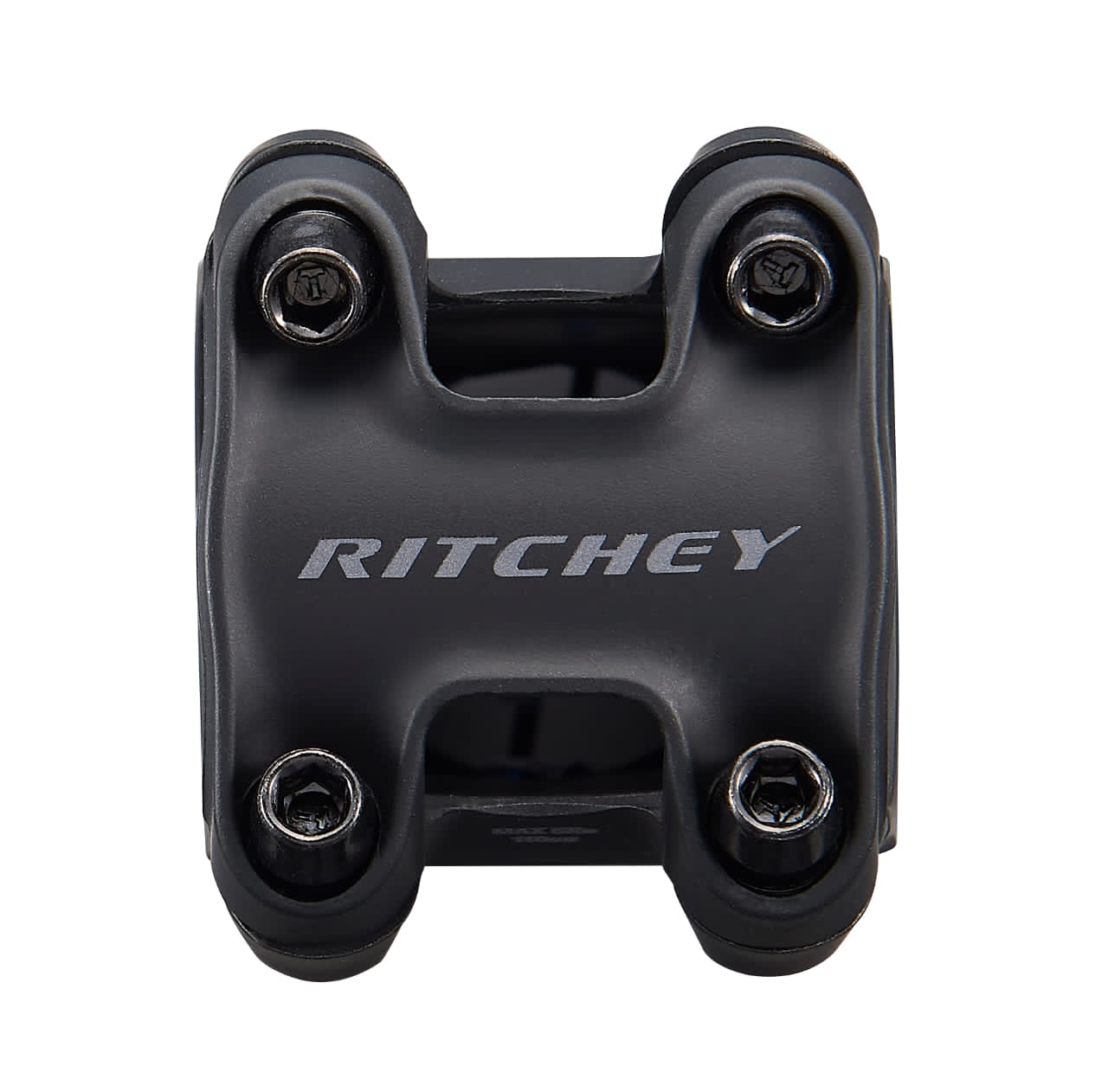

• Press-fit clamp design installs and removes like a standard stem
• Stainless steel black bolts
• Lengths: 60-120mm
• Angle: 84°
• Bar clamp diameter: 31.8mm
• Steerer diameter: 1-1/8" (28.6mm)
• Steerer height: 42mm
• Faceplate width: 44mm
• Weight: 136g (110mm)
