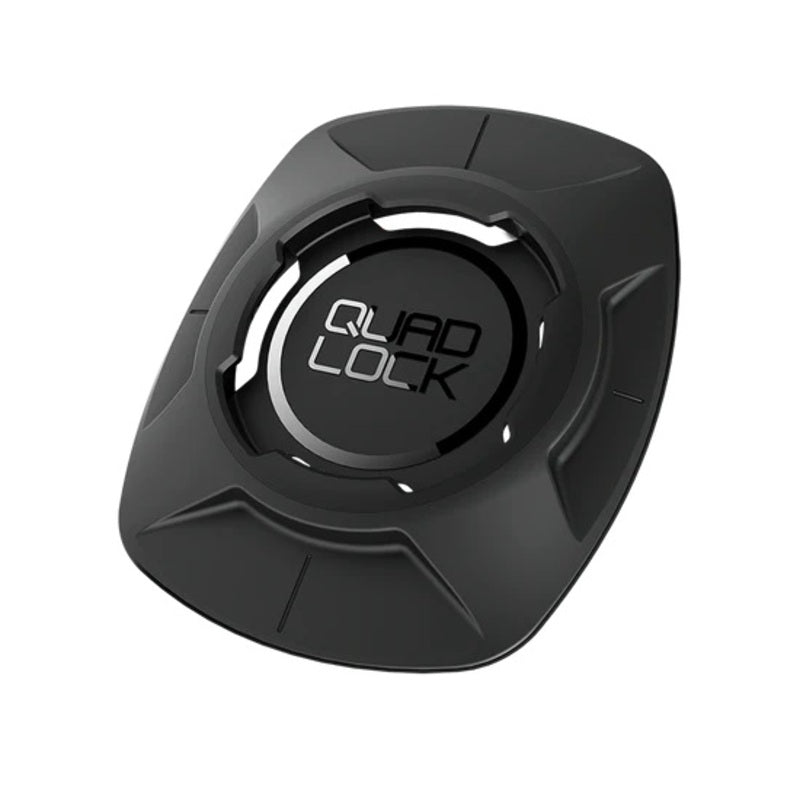

Quad Lock Universal Adaptor V3

The Quad Lock® Universal Adaptor can be directly adhered to smartphones, cases and most flat metal or plastic surfaces, and is compatible with all Quad Lock® Mounts.

SECURE MOUNTING
The Patented Dual-Stage Lock makes it quick & easy to attach / detach your device, whilst giving you the peace of mind to know your device is securely locked.

SLIM PROFILE
At just 5mm thick, the Quad Lock® Universal Adaptor fits seamlessly onto the back of smartphones and cases.

• 1 x Quad Lock® Universal Adaptor
• Alcohol Prep Pad

Specs

• 3M™ VHB adhesive
• Slim profile (5mm thick)
• 48mm wide and 60mm tall
• Durable and tough composite construction
• Adheres to flat and slightly curved surfaces

Surface Guidelines

The Quad Lock Universal Adaptor uses a 3M™ VHB 4952 Adhesive which will adhere to smooth, non-textured, non-porous surfaces such as:

• Plastics such as PC, ABS, PVC, Nylon, Acrylic
• Non-painted metals
• Un-coated glass

The adhesive will not bond to the following substrates:

• Rubber, TPU, TPE
• Leather
• Silicone
• Hydrophobic coated glass (Also known as anti-fingerprint glass, which is found on the back of most modern smartphones)
• Soft touch coating or paint
• Low surface energy plastics such as Polypropylene (PP), Polyethylene (PE), Acetal, HDPE
• Wood

We highly recommend using a case with the Universal Adaptor if your phone has a glass back.

Please ensure the substrate is thoroughly cleaned and dry before applying the Universal Adaptor.

The 3M™ VHB™ is a single use adhesive and is not reusable.
