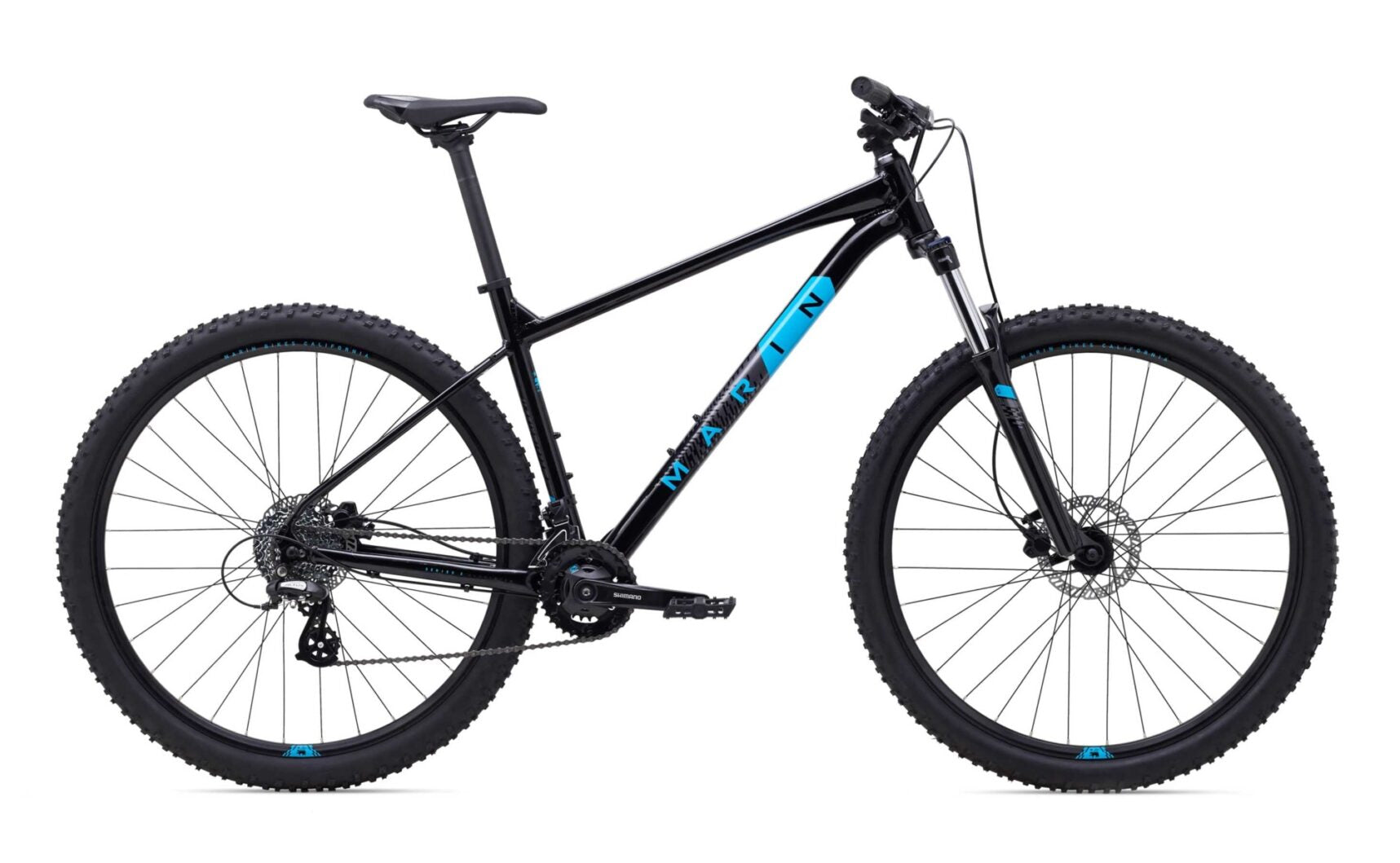

Marin Bobcat Trail 3 (27.5 Mountain Bike)

HARDTAIL TRAIL RIDING

AGGRESSIVE SINGLETRACK

The Bobcat Trail is a capable mountain bike with modern trail geometry build for exploring singletrack trail systems. Best-in-class frames and solid, serviceable spec make the Bobcat Trail a solid choice for the recreational rider looking to step up to modern geo and step deeper into mountain biking, and for the experienced rider in search of an update that doesn’t break the bank.

Key upgrades over the Bolinas Ridge 2:

• Series 2 aluminum frame w/double butted tubing & internal cable routing
• SR Suntour XCM HLO fork w/120mm travel & hydraulic lockout
• Tektro hydraulic disc brakes

SPECIFICATIONS

• FRAME

  Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing

• FRONT SUSPENSION

  SR Suntour XCM HLO DS, 120mm Travel, Hydraulic Lockout, 46mm Offset

• RIMS

  Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific

• HUB, REAR

  Forged Alloy, 32H

• HUB, FRONT

  Forged Alloy, 32H

• SPOKE, NIPPLES

  14g Black Stainless Steel

• TIRES

  MTB, 27.5/29x2.25"

• DERAILLEUR, REAR

  Shimano Altus, 8-Speed

• DERAILLEUR, FRONT

  Altus Double

• SHIFT LEVER

  Shimano Altus 2x8

• CRANKSET

  Alloy Crank, Steel Chainrings, 36/22T

• BOTTOM BRACKET

  Sealed Cartridge Bearings, Square Taper

• CHAIN

  KMC Z-8.3

• CASSETTE

  SunRace 8-Speed, 11-34T

• BRAKE, FRONT

  Tektro HD-M275 Hydraulic Disc, 160mm Rotor

• BRAKE, REAR

  Tektro HD-M275 Hydraulic Disc, 160mm Rotor

• BRAKE LEVERS

  Tektro M275 Hydraulic Disc

• HANDLEBAR

  Marin 31.8 Riser, 12mm Rise, 780mm Width

• STEM

  Marin Alloy, 31.8mm Clamp, 45mm

• GRIPS

  Marin MTB, Closed End

• HEADSET

  FSA No.10-P

• SEATPOST

  Marin Alloy, 30.9

• SADDLE

  Marin MTB

• PEDALS

  Nylon Platform
